Launch instance

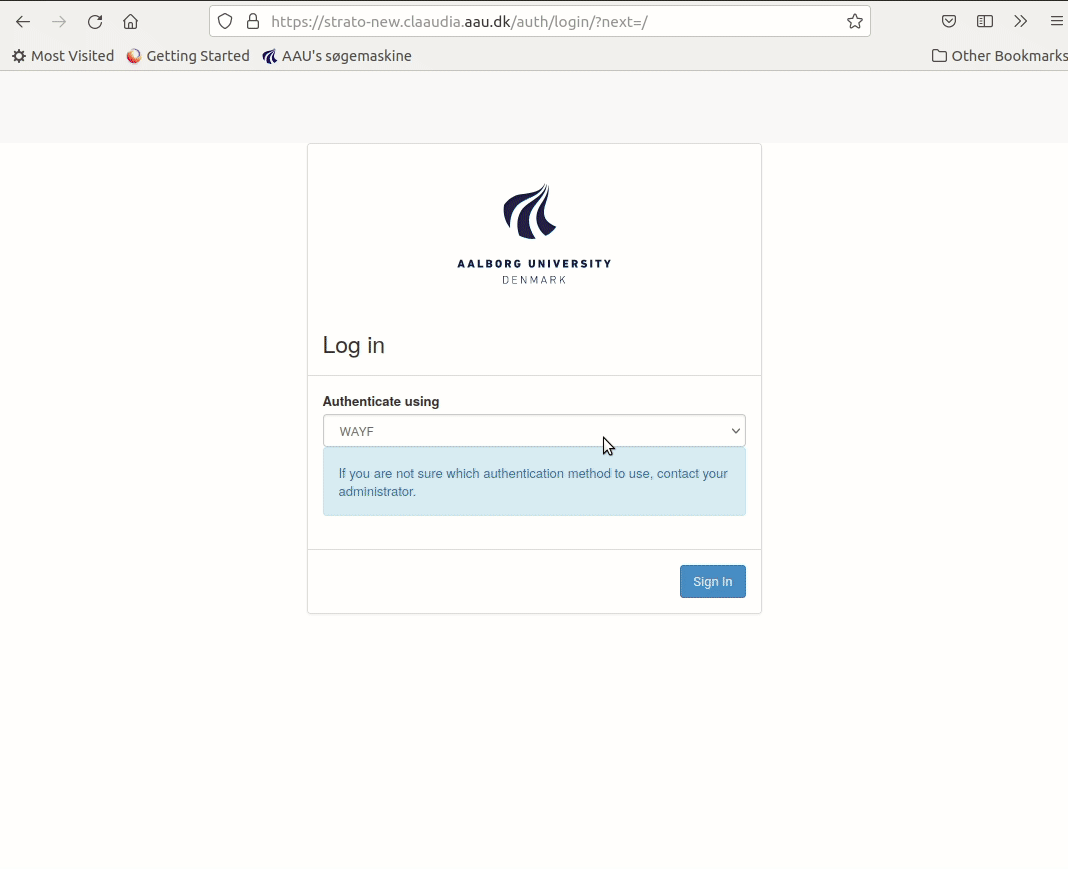

Log in to Strato

Strato instances are launched in an Openstack dashboard which can be accessed at: strato-new.claaudia.aau.dk.

  • Ensure the field "Authenticate using" is set to "WAYF" and click Sign in.
  • You will be redirected to "signon.aau.dk/" where you must login with your regular AAU credentials. Enter them and click Sign in.

When you have done this, you should have reached the OpenStack dashboard!

Alt Description

Initial Openstack setup

The default way of accessing Strato instances is done with SSH. This a commonly used protocol in cloud computing. Before launching your first Strato instance, we need to make a couple of configurations in the OpenStack platform.

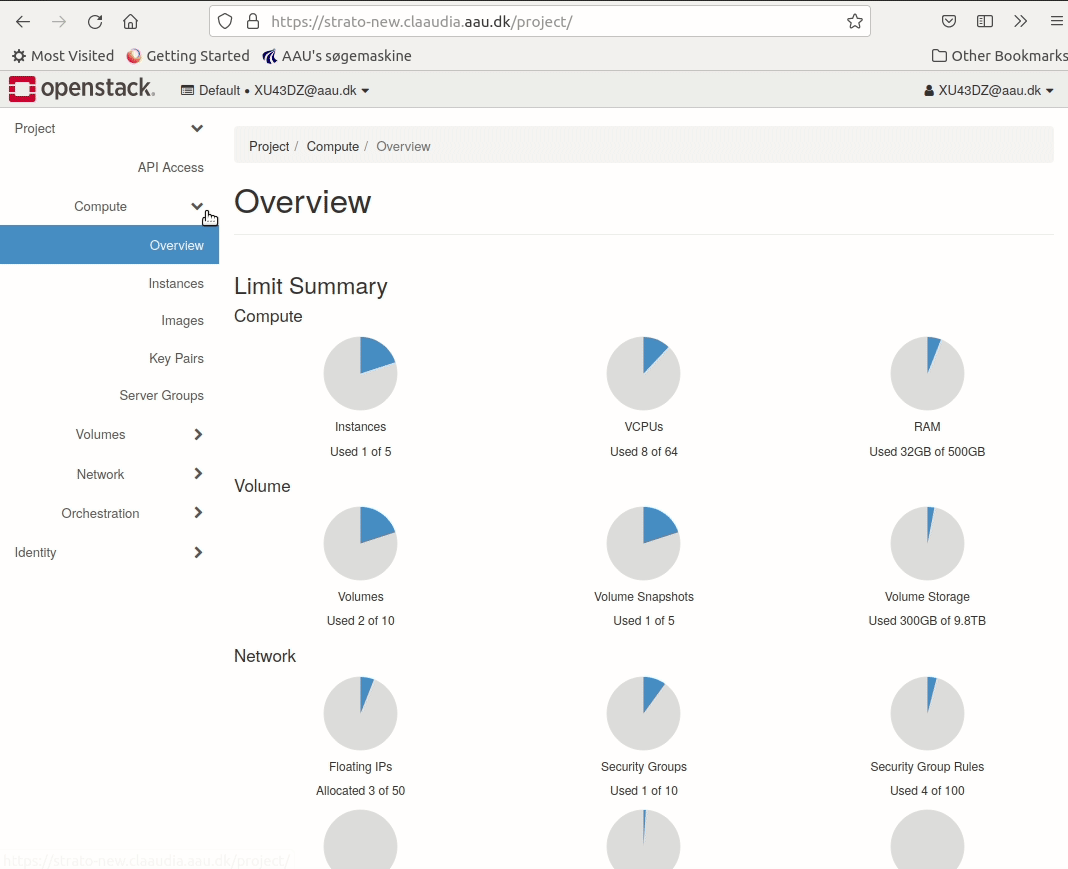

SSH rule

Strato configures port access with Security groups. Each group can have multiple rules to permit access. Follow these steps to add port 22 (standard for SSH) to the default security group.

  1. Navigate to Network -> Security Groups
  2. Click Manage Rules on the default Security group
  3. Click Add Rule
  4. Choose SSH from dropdown menu.
  5. Click Add

Alt Description

Create SSH key pair

Authenticating with SSH requires you to have an SSH key pair. This key pair consists of a public key (stored on the remote device) and a private key (stored only on your local device).

For security reasons your SSH-key must be encrypted with a password, and therefore this needs to be done on your local computer. In the following we will create a key pair using the OpenSSH-standard compatible with Strato.

The following will work on most modern terminal emulators. For Windows users we recomend using the preinstalled application Powershell.

  • Open your terminal application.
  • Enter cd ~/.ssh to navigate to the conventional directory for SSH-keys.
    • If the directory doesn't exist already, you can create it with:
      • mkdir ~/.ssh MacOS/Linux
      • md ~/.ssh on Windows
    • Don't forget to enter the directory afterwards, with cd ~/.ssh
    • Type ls to list the files in the current directory. This is just so you can keep track of what changes.
  • Enter ssh-keygen to initiate the key generation.
  • When faced with the prompt "Enter file in which to save the key..." you can set an optional name for your keyfile.
  • Then you will asked to set a password. For security reasons, we strongly recommend setting a password for your keys. See AAU IT Security's recommendations for passwords.
  • You should now have two files that weren't there before. Typing ls will reveal two new files: "id_rsa" and "id_rsa.pub" (if you chose your own file name this will have replaced the "id_rsa" part).

Upload key pair to OpenStack

Now that we have created our key pair, we need to upload the public key to Strato

  • Navigate to Compute -> Key Pairs
  • Click Import Public Key. This will open a dialog box.
  • Under Key Pair Name type in the name you gave the key, when you created it.
  • Under Key Type select SSH.
  • Under Load Public Key from a file click Browse and navigate to the location of your keyfile.
    • On Mac OS and Linux the directory ~/.ssh is hidden and might not be visible in your file manager.
      • MacOS Finder press "cmd + shift + ." to show hidden files.
      • Ubuntu/Gnome (using Nautilus file manager) press "ctrl + h" to show hidden files.
  • Select your public key file (ends in .pub) and click Ok.

Launch Ubuntu instance

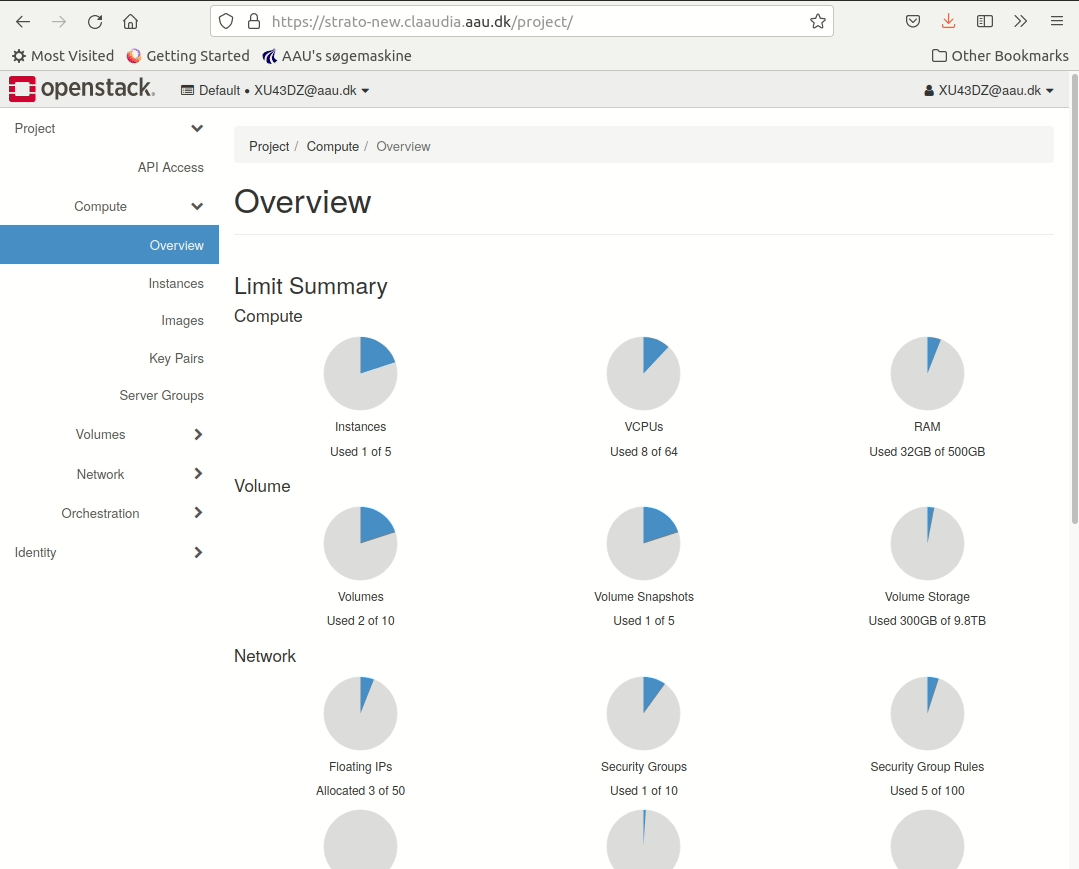

To launch the Ubuntu instance navigate to the "launch instance" menu using the webinterface.

  1. Navigate to Compute -> Images
  2. Press Launch on the right side of the image you wish to Launch.

Alt Description

In the "Launch instance" menu you can choose the settings for the instance. In this excercise we will apply the following:

  • Details: Choose a name for your instance.
  • Source: Choose Ubuntu 22.04.
  • Flavour: Choose "AAU.CPU-1-4" to create the smallest possible instance.
  • Networks: Select "Campus Network 01" or "Campus Network 02". If you are interested in having an instance that is globally accessible for e.g. hosting a webservice, copying data from another university etc., then select "AAU Public". Make sure you understand the security risks.
    • Only associate one of the two networks to your instance. If you associate both; it will not work without considerable additional effort not documented here.
  • Security groups: Ensure that the default security group we edited earlier is applied (should be default).
  • Key-pair: Ensure that the key-pair created earlier is applied (should be default).

Alt Description

Congratulations!

You have launched your first instance. Now consult the "Access instance"-section to learn how to access your instance!

Reminder: Strato is a pool of ressources shared between all users. If you do not plan on using the instance, you have just created, please delete it, so other users can make use of the ressources. Consult the page "Shelve instance" for instructions on how to do this.
